  E59912-WT - CounterMax MX-L120DC 7" 3000K 2-LED Under Cabinet

Product on Display Locator

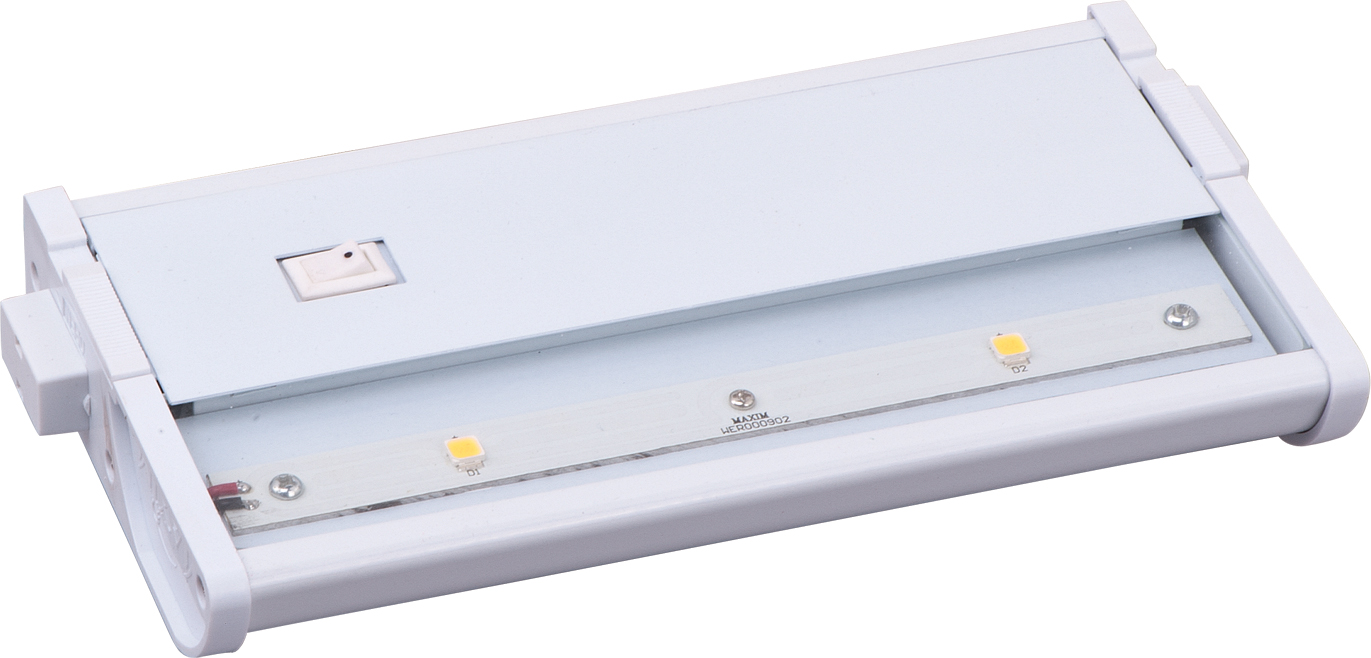

CounterMax MX-L120DC 7" 3000K 2-LED Under Cabinet
Discontinued


Collection: CounterMax MX-L120DC Click for Addtional Information on the Cubic Collection
Type: Under Cabinet
Finish: White
Glass: Clear

Lamping

Number of Bulb: 2
Light Type: LED
Bulb Type: Cree® LED An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Bulb Max Wattage: 2.44
Fixture Max Wattage: 4.88
Rated Life: 50,000 Hours An average rating, in hours, indicating when 50% of a large group of lamps have failed, when operated at nominal lamp voltage and current; manufacturers use 3 hours per start for fluorescent lamps and 10 hours per start for HID lamps when performing lamp life testing procedures; every lamp type has a unique mortality curve that depicts its average rated life. For Photo-Optic specialty lamps, average rated life refers to the operating period after which on statistical average, 50% of the lamps will perform within their specified values.
Rated Lumens: 200 A measurement of the power of light emitted from a source. The difference between LED lumen versus lumens from an incandescent or fluorescent source is that all of the lumen output is directed forward as opposed to a bulb where lumens come off the source in all directions. Lumens are lost on the back side of a bulb.
Color Temperature: 3000 K This is a measurement in Kelvin of the color of light a source produces. Higher color temperatures (5,000 K or more) are cool (blueish white) colors; lower color temperatures (2,700–3,000 K) are warm (yellowish white through red) colors.
Bulb(s): Integrated
Dimmable: Lutron® or Leviton® LED Dimmer

Measurements

Width: 4"
Height: 1"
Length: 7"
Hanging Weight: 1.28 lb.
UPS Shippable: Yes Any box shipped via UPS that that is larger than 3 cubic feet in size will be charged shipping costs based on its dimensional weight rather than the actual weight of the package.

Carton

Certifications/Other

UL Standard: Dry

Improvement Direct: visit
Lighting Universe: visit
1Stop Maxim Lighting: visit
Lighting Showplace: visit
Maxim Lighting Lights: visit


CounterMax MX-L120DC Collection
With a sleek profile and direct wiring, this fully dimmable state-of-the-art CounterMax MX-L120DC under cabinet light, powered by choice of 3000K LED manufactured by CREE® or 2700K LED manufactured by Philips® Luxeon®, easily installs under the cabinet with it¿s built-in knock outs and emits a crisp white light which illuminates without shadows. The hinged top gives easy access for installation and wiring. Cabinets stay cool and safe with LED light output. CounterMax MX-L120DC is linkable without or with cords using MXInterLink4 accessories.
