LAMPING Light Type: LED Bulb Type: PCB Integrated Bulb Max Wattage: 31 Total Wattage: 31 Lighting Direction: Down Install Up/Down: Down Rated Life: 35,000 Hours Rated Lumens: 2170 Delivered Lumens: 2120 Color Temperature: 3000 K Bulb(s): Integrated Photo Cell: N CRI: 80 Dimmable: ELV or Triac CL Input Voltage: 120
MEASUREMENTS Width: 4.75" Height: 19.75" Length: 10" Extension: 4.75" HCO: 5" Wire Length: 8" Hanging Weight: 2.9 lb. UPS Shippable: Yes Canopy Width: 6"Canopy Height: 1.5"Canopy Length: 10"
CERTIFICATIONS/ OTHER Safety Rating: Wet ADA Compliant: Yes Finish: Black Material: Aluminum, Acrylic, Steel
View Hi-Res Image
Specification Sheet
Assembly Instructions
Parts and Accessories
Schematic Diagram
LED

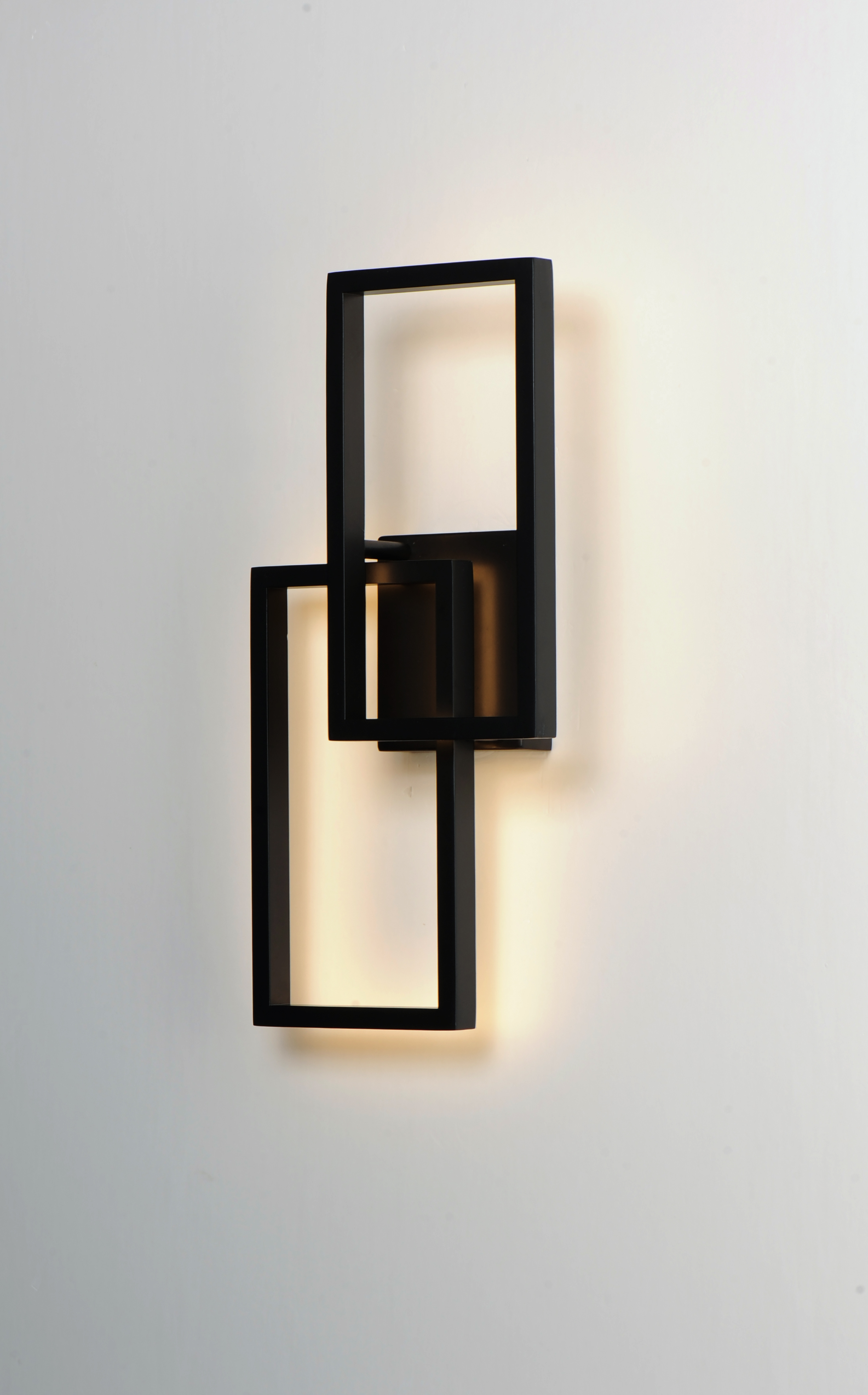

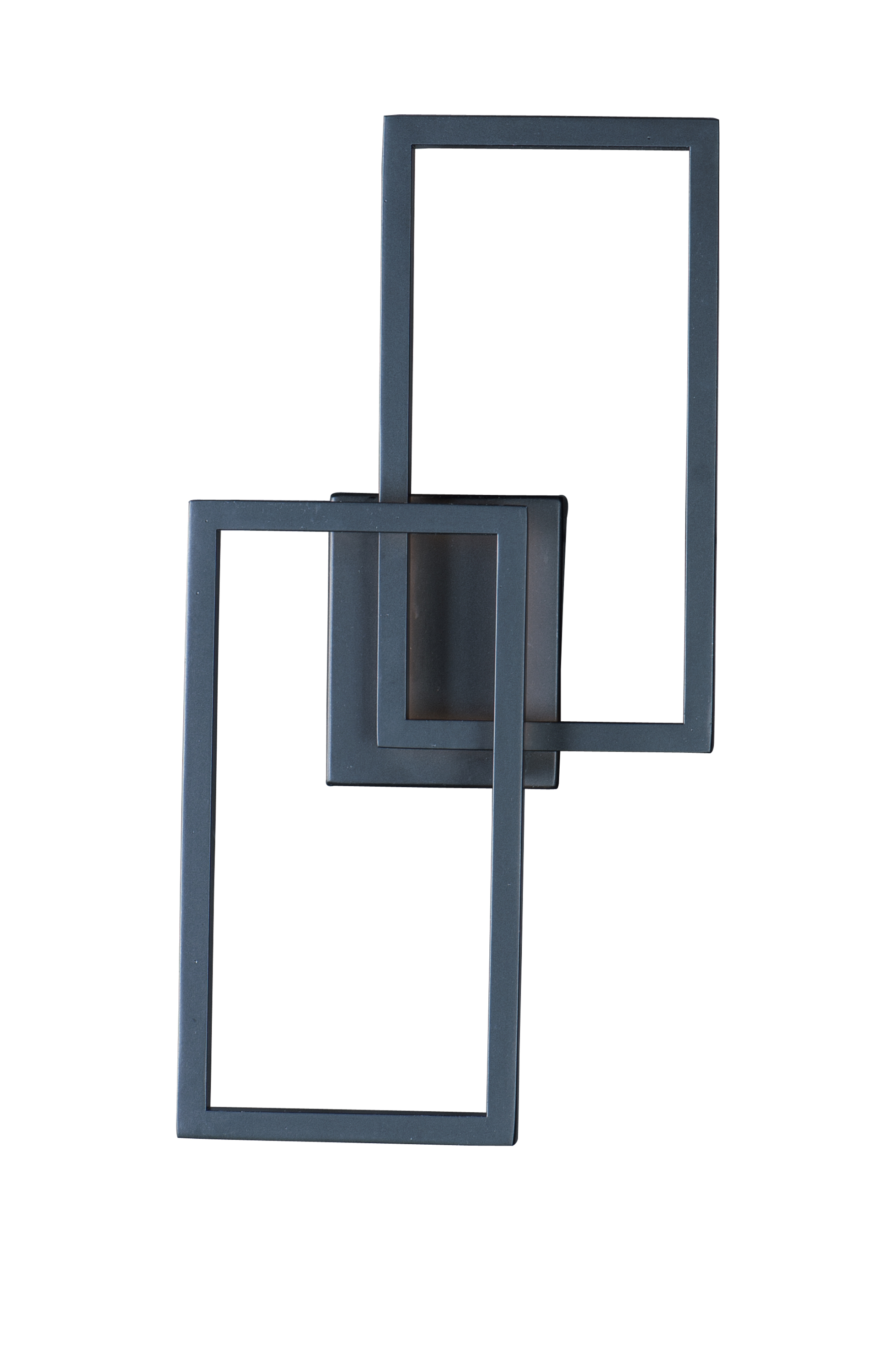

Multiple squares are layered in a geometric pattern to form an interesting lighting sculpture. Enclosed behind the white acrylic lens is a high power LED for even and economical illumination.
Bottom
Top
